[2023] Use Valid New ACP-01101 Test Notes & ACP-01101 Valid Exam Guide

ACP-01101 Actual Questions Answers PDF 100% Cover Real Exam Questions

Individuals who pass the Autodesk ACP-01101 Certification Exam receive a certificate that recognizes their proficiency in AutoCAD for drafting and design. Autodesk Certified Professional: AutoCAD for Drafting and Design certification can be a valuable asset for professionals looking to advance their careers in the field of drafting and design. It is also a great way for organizations to identify and recognize skilled professionals in their teams.

NEW QUESTION 22

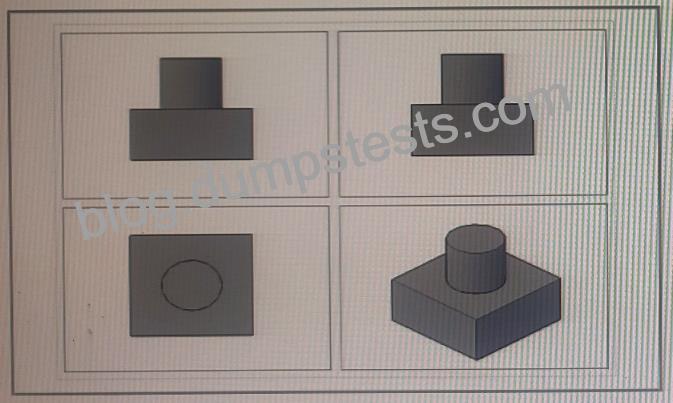

You need to configure the layout viewports shown in the exhibit.
Which three methods can you use to create the viewports in a layout tab? (Select 3)

Clip a viewport to multiple different shapes by using the VPCLIP command.

From the Viewports dialog box: select a viewport configuration.

Create individual viewports by using the MVIEW command.

From the View Manager dialog box, generate named views and add them as layout viewpoints.

Create a new page setup.

Explanation
a layout viewport is a window that displays a view of model space on a layout tab. You can create multiple layout viewports to display different views of your model at different scales.
To create the viewports in a layout tab, you can use three methods:
* From the Viewports dialog box: select a viewport configuration
* Create individual viewports by using the MVIEW command
* From the View Manager dialog box, generate named views and add them as layout viewpoints These methods will allow you to create and arrange viewports on your layout tab.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2018/ENU/AutoCAD

NEW QUESTION 23

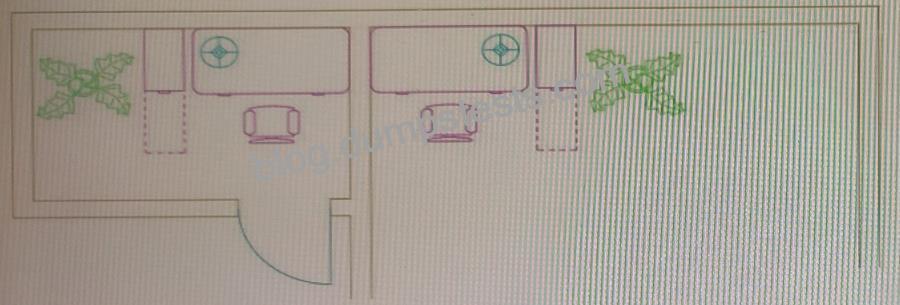

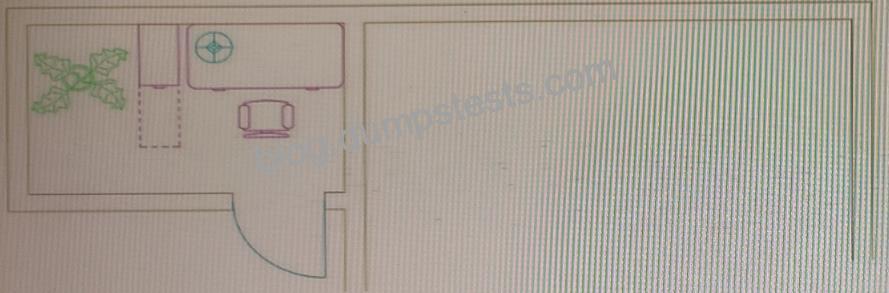

You have the office arrangement shown in exhibit 1. (Refer to the exhibit 1 tab.)

You need a mirror line to create the right-hand office arrangement shown in exhibit 2. (Refer to the exhibit 2 tab.)

Which tool would you use to make sure the mirror line is centered between the two wall lines without adding additional linework?

Mid Between Two Points (M2P)

Endpoint (END)

Midpoint (MID)

Intersection (INT)

Explanation
https://www.tutorial-autocad.com/mirror-command
http://docs.autodesk.com/ACD/2011/ENU/filesMDG/WS1a9193826455f5ff2566ffd511ff6f8c7ca-3f53.htm

NEW QUESTION 24
In the Layer Properties Manager, which column should you use to prevent a layer from being displayed in the active viewport only?

Freeze

VP Plot

VP Freeze

Explanation
The column you should use in the Layer Properties Manager to prevent a layer from being displayed in the active viewport only is “VP Freeze”. The VP Freeze column allows you to control the visibility of layers in specific viewports. When you freeze a layer in the VP Freeze column, it is only hidden in the active viewport and remains visible in other viewports. On the other hand, when you freeze a layer with the Freeze column, it becomes hidden in all viewports. Therefore, VP Freeze is the column you should use to hide a layer in a specific viewport only.
https://help.autodesk.com/cloudhelp/2015/ENU/AutoCAD-LT/files/GUID-B297EBD9-D68C-47E1-87CE-1B37

NEW QUESTION 25

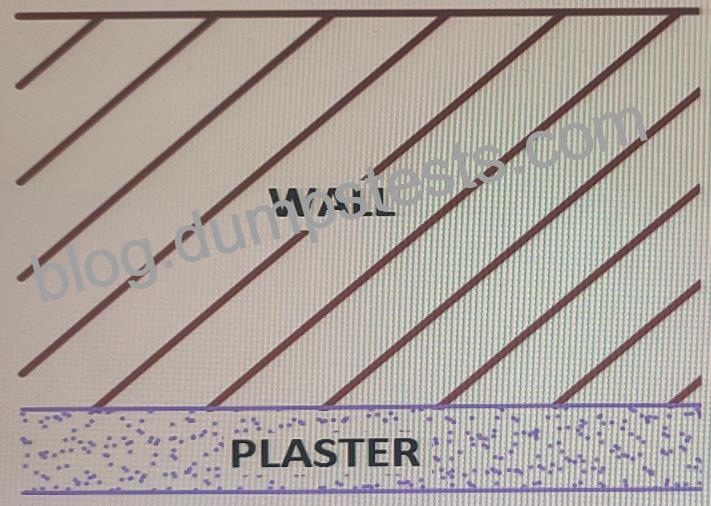

Exhibit

This image needs to be reproduced in AutoCAD. The wall and plaster lines need to be on separate layers.
After drawing the top wall line on the wall layer, then selecting it, what two options in the Offset (OFFSET) command should be used to offset and place the resulting lines on the plaster layer? (Choose two.)

Specify Offset Distance

Select Current

Select Object

Select Layer

Explanation
The offset command is used to create parallel lines, concentric circles, and parallel curves1. To use the offset command, you need to specify the offset distance and select the object that you want to offset23.

NEW QUESTION 26

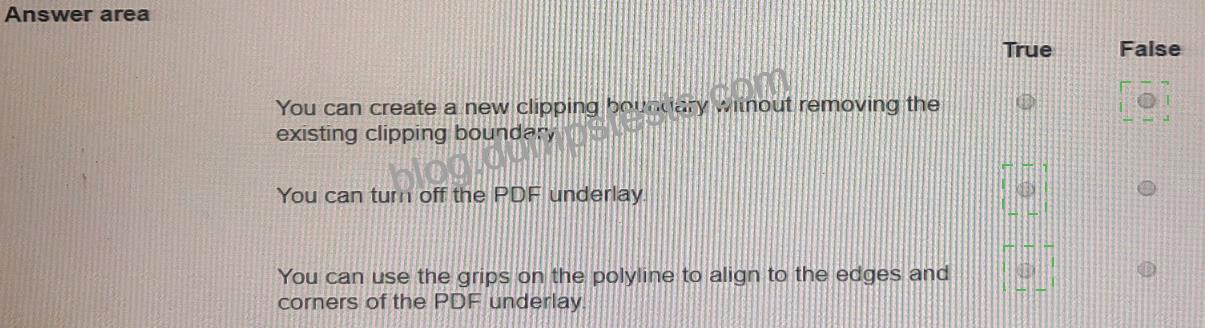

You place a red rectangular polyline over a PDF underlay in a drawing, and then use the rectangular polyline as a clipping boundary. The result is shown in the exhibit.
Select whether each statement is True or False.

Explanation
False: You cannot create a new clipping boundary without removing the existing clipping boundary. If you want to change the clipping boundary, you have to select the PDF underlay, right-click and choose Remove Clipping Boundary first, and then use the Clip PDF command again with a different option12.
True: To access the Underlay Layers dialog box, you have to select a PDF underlay, right-click and choose PDF Layers2. In the Underlay Layers dialog box, you can click the light bulb icon for the layer name that you want to turn on or off2.
True: To use the Align command, you have to select a polyline, right-click and choose Align3. Then you have to specify two source points on the polyline and two destination points on the PDF underlay that correspond to each other3. You can also specify a third pair of points if needed3. Finally, you have to press Enter twice to confirm the alignment3. The statement “You can use the grips on the polyline to align to the edges and corners of the PDF underlay” is true. When you place a rectangular polyline over a PDF underlay and use it as a clipping boundary, the polyline’s grips can be used to adjust its size and position so that it aligns with the edges and corners of the underlay.
By hovering the cursor over a grip, you can see its tooltip display the name of the grip and its function. If you then click and drag the grip, you can move it along its corresponding axis to resize the boundary. This allows you to adjust the clipping boundary to fit exactly over the content you want to display.

NEW QUESTION 27
Drawings from different sources have been combined and resulted in duplicate background elements that are slightly offset from each other Some of the layer names match and other layers have an E prefix, indicating that they are existing.
To clean up the drawing, the Overkill (OVERKILL) command is used.
Which two settings will resolve the duplicate background and offsetting issues? (Select 2)

Ignore Layer object property

Ignore Color object property

Ignore Transparency

Maintain associative objects

Tolerance value

Explanation
You need to ignore layer object property to remove duplicates that have different layer names but are otherwise identical4. You also need to set a tolerance value that is larger than the offset distance between the objects5.

NEW QUESTION 28

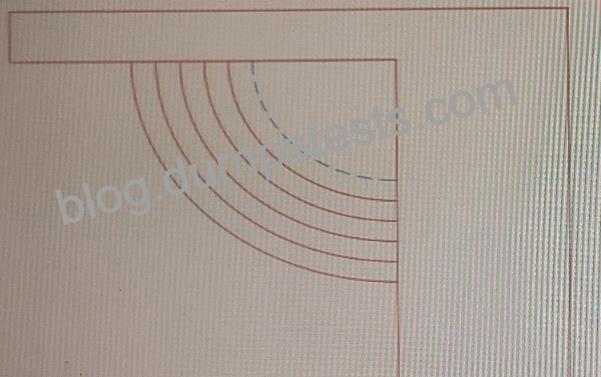

Refer to the exhibit.

The exhibit shows a set of ornamental garden stairs going up to a walkway as part of a landscaping design.
You need to make sure that the edge of the top step in shown in a different linetype, as shown by the dashed line in the exhibit.
Which prompt in the OFFSET command should you use?

Through

Current

Erase

Source

Explanation
The Current prompt should be used to make sure that the edge of the top step is shown in a different linetype, as shown by the dashed line in the exhibit. This way, you can set a different linetype for your current layer before using the OFFSET command4.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/AutoCAD

NEW QUESTION 29

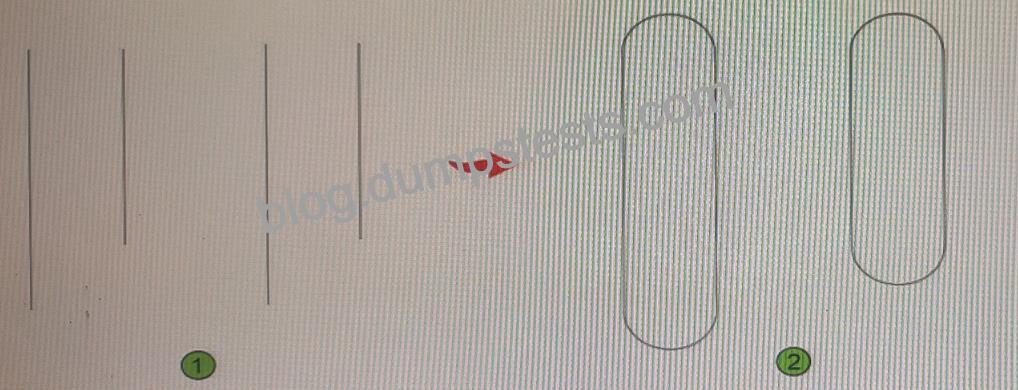

You need to convert the two sets of parallel lines shown in 1 into the objects shown in 2 without repeating the command.
What should you use?

The CHAMFER command with the Multiple option

The CHAMFER command with the Polyline option

The FILLET command with the Polyline option

The FILLET command with the Multiple option

Explanation
According to the AutoCAD for Design and Drafting documents, the CHAMFER command creates a beveled corner between two lines, while the FILLET command creates a rounded corner between two lines. Both commands can be used with the Polyline option to apply chamfers or fillets to all corners of a 2D polyline1.
However, in this case, the lines are not polylines but separate line segments. Therefore, using the Polyline option will not work. Instead, you can use the Multiple option to chamfer or fillet multiple sets of lines without restarting the command2.

NEW QUESTION 30
You start the EXTEND command.
You need to be able to trim several objects quickly without exiting the EXTEND command.
What should you do?

Hold the Shift key while selecting the objects.

Hold the Alt key while selecting the objects.

Hold the Ctrl key while selecting the objects.

Hold the Ctrl+Shift key while selecting the objects.

Explanation
According to the AutoCAD for Design and Drafting documents1, the EXTEND command allows you to extend objects to meet the edges of other objects. To trim objects instead of extending them, you can hold down the Shift key while selecting the objects1. This will invoke the TRIM command within the EXTEND command.
https://autocadprojects.com/trim-and-extend-command/

NEW QUESTION 31
Your company asks you to research alternative editable CAD formats to export to for non-AutoCAD users.
Which three alternative CAD file formats can be exported from AutoCAD? (Select 3)

RVT

STL

IAM

BMP

DWF

Explanation
https://knowledge.autodesk.com/support/revit/learn-explore/caas/CloudHelp/cloudhelp/2022/ENU/Revit-Docum

NEW QUESTION 32

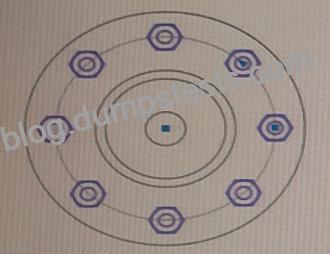

With an associative array selected as shown in the exhibit, which command will separate the objects into individual objects?

Explode

Disassociate

Ungroup

Break

Explanation
array items are contained in a single array object, similar to a block. You can change the number of these items and their spacing in an associative array.
Based on 2, you can move an item in an associative array by pressing and holding the Ctrl key, and then selecting the items you want to move.
since explode is the command that separates objects into individual objects. Disassociate, ungroup and break are not valid commands for associative arrays.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD

NEW QUESTION 33

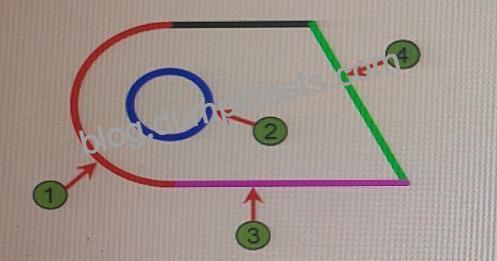

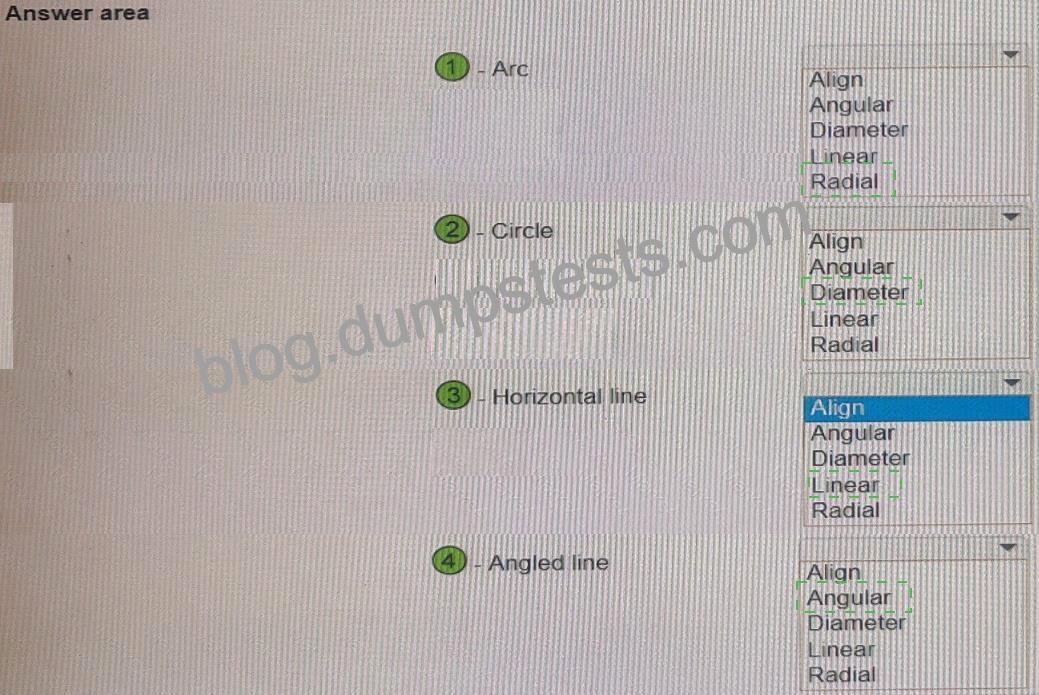

You have the drawing shown in the exhibit.

You are using the DIM command to preview suitable dimension type objects in the drawing.

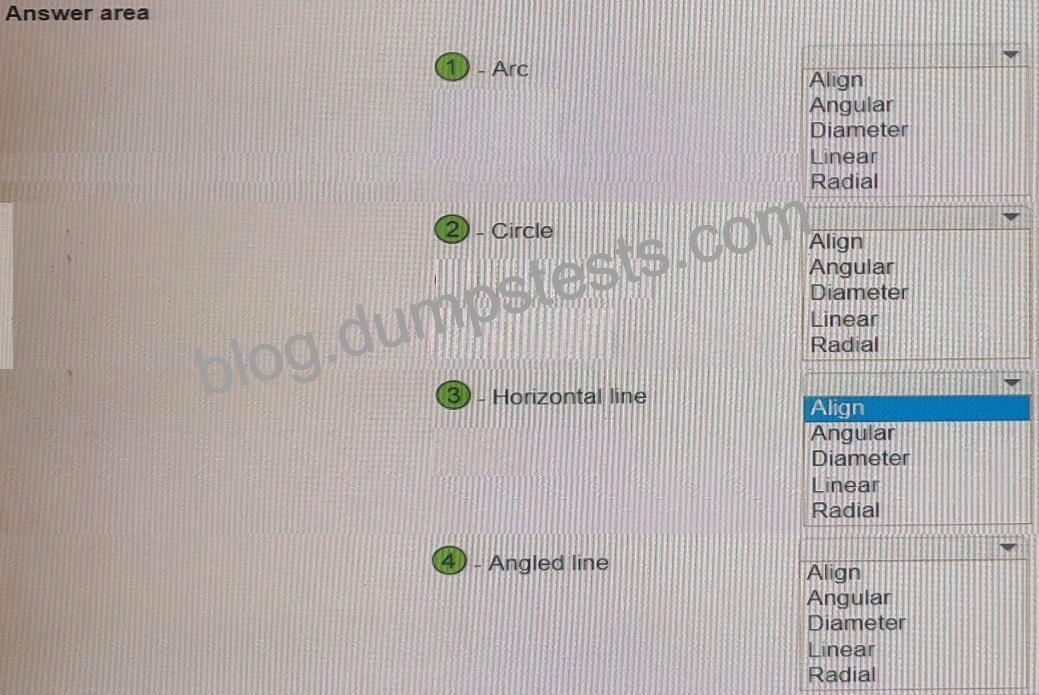

Which dimension type will appear when you hover over each object? Select the appropriate dimension type from each of the drop-down lists.

* When you hover over the arc (1), you will see a radius dimension type preview.
* When you hover over the circle (2), you will see a diameter dimension type preview.
* When you hover over the horizontal line (3), you will see a horizontal linear dimension type preview.
* When you hover over the angled line (4), you will see an angular dimension type preview.

NEW QUESTION 34

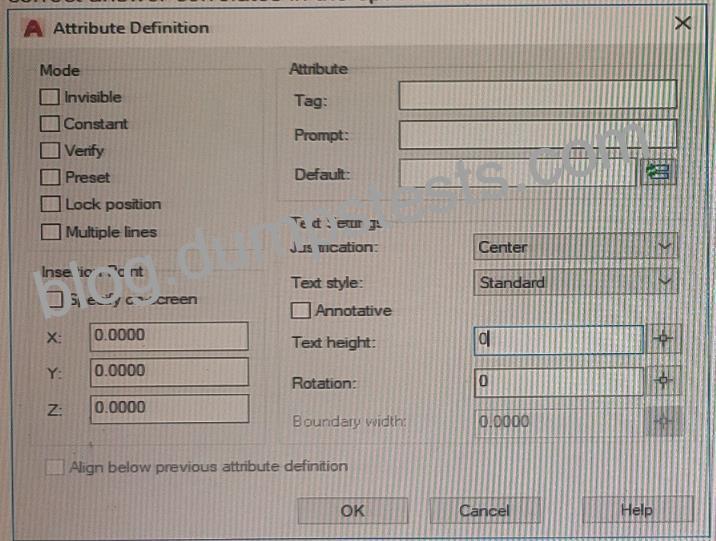

When you create an attribute definition, which mode should be used if you want the default value of the attribute assigned upon insertion where the attribute value cannot be changed?
Note Exhibit shown is the AutoCAD interface in Windows While the AutoCAD for Mac version differs in appearance, the correct answer correlates in the options.

Constant

Lock position

Verify

Preset

Explanation
the mode that should be used if you want the default value of the attribute assigned upon insertion where the attribute value cannot be changed is Constant. This option sets the attribute value as constant and prevents it from being modified during a block insertion or later.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD

NEW QUESTION 35

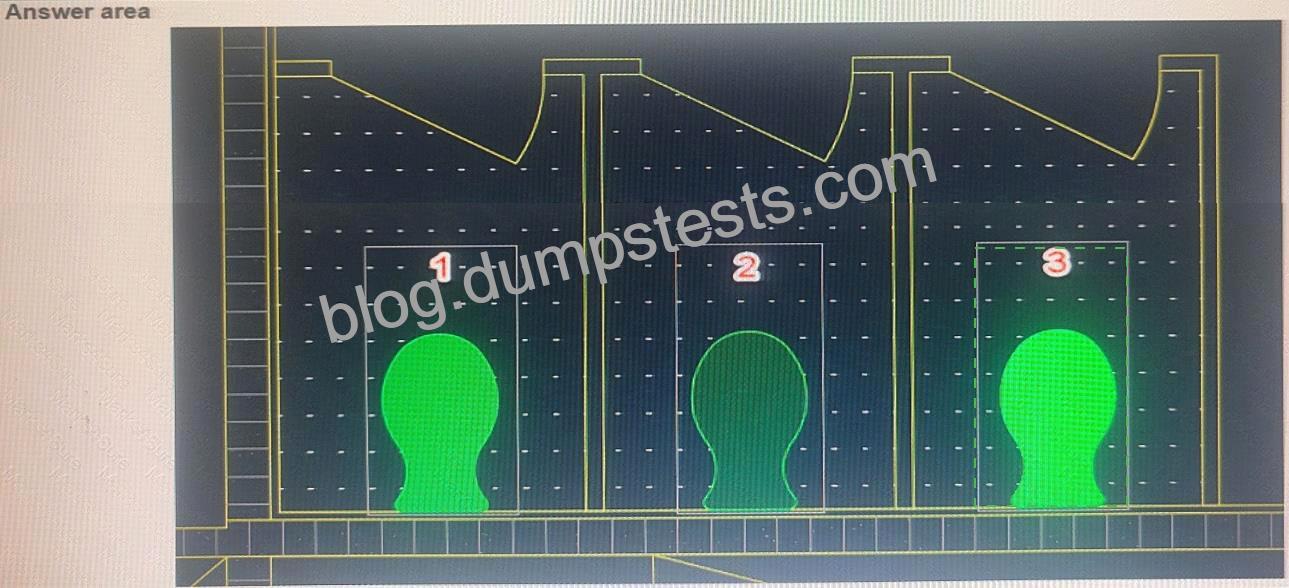

You have a drawing that contains three of the same objects.
Which object has layer transparency set to 90? Click the correct object in the answer area.

Explanation
According to the AutoCAD for Design and Drafting documents, layer transparency is a property that makes objects on a layer appear translucent or opaque. The higher the transparency value, the more transparent the layer appears. Therefore, the object that has layer transparency set to 90 is the one that appears the most faded or dimmed in the drawing. In this case, it is the object on the right. You can click on it to select your answer.

NEW QUESTION 36
A block entity in the current drawing needs to be converted to a new drawing file of its own.
Which command should be used?

BEDIT

BSAVEAS

BLOCK

WBLOCK

Explanation
the command that should be used to create a new drawing file from selected objects is WBLOCK. This command allows you to export a group of objects as a drawing, which can be inserted into other drawings as a block2.

NEW QUESTION 37

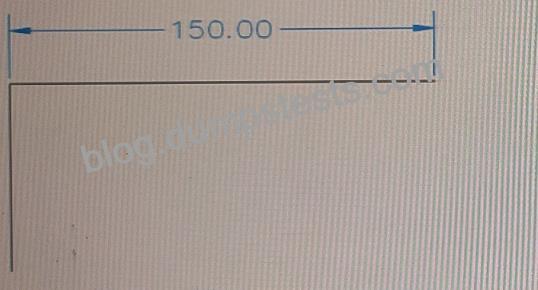

You have a line segment that is 150 units long as shown in the exhibit.
You need the line to be 200 units long without adding any additional linework. The leftmost end of the line must remain in the current position.
What should you do?

From the Project option of the Extend command, enter 50 units, and then select the right end of the line.

From the Delta option of the Lengthen command, enter 50! units and then select the right end of the line

From the Delta option of the Lengthen command, enter 200 units and then select the right end of the line

From the Edge Extension option of the Extend command, enter 50 units, and then select the right end of the line

Explanation
From the Delta option of the Lengthen command, enter 50 units and then select the right end of the line. This way, you can increase the length of the line by 50 units from its current endpoint without changing its direction or position2
https://www.learnvern.com/autocad-tutorial-in-hindi/how-to-use-lengthen-command

NEW QUESTION 38

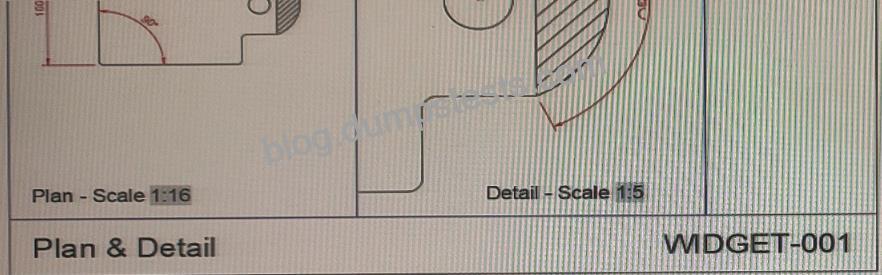

Exhibit

The viewport scales in the title block shown are field value as extracted from the properties of each viewport.
When using the Insert Field command to edit the text value and generate the viewport scale, which object property should you use, if the default scale list is being used?

Standard scale

Visual style

Display locked

Object name

Explanation
The object property that you should use when using the Insert Field command to generate the viewport scale, if the default scale list is being used, is the “Standard scale”.
The “Standard scale” property is used to specify the standard scale factor for the viewports. It represents a value in the format of 1:n, where n is the scale factor. For example, if you set the standard scale to 1:50, the viewport will display objects at a scale of 50 units per drawing unit.
To use this property in the Insert Field command, you can select “Object” in the “Field category” dropdown and “Standard scale” from the “Field names” dropdown. This will insert a field code that will automatically update the viewport scale based on the properties of the viewport.

NEW QUESTION 39
You need to create a hatch pattern that looks the same regardless of the viewport scale.
What should you do?

Set the default hatch pattern

Create an annotative hatch

Create an associative hatch

Set the current hatch scale by using the HPSCALE system variable

Explanation
an annotative hatch is a hatch that automatically adjusts its scale and size to match the viewport scale. This means that the hatch pattern will look the same regardless of how you zoom in or out of the viewport.
To create an annotative hatch, you need to:
* Set the annotation scale tool to 1:1
* Create your hatch as usual
* In the properties palette, make the hatch annotative
* Add annotation scales to the hatch as needed
This will create a hatch that displays correctly at different viewport scales.
https://forums.autodesk.com/t5/autocad-forum/annotative-hatch/td-p/2651268

NEW QUESTION 40
Which two objects support associative dimensions? (Select 2)

Hatches

Arcs

Images

Polylines

Explanation
associative dimensions adjust to changes in the geometric objects they measure. Dimension associativity defines the relationship between geometric objects and the dimensions that give their distance and angles.
Based on 2 and 3, dimensions in a layout may be associated to objects in model space when the DIMASSOC system variable is set to 2.

NEW QUESTION 41

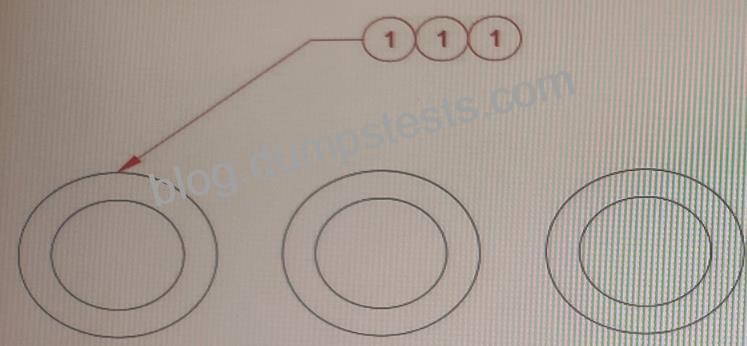

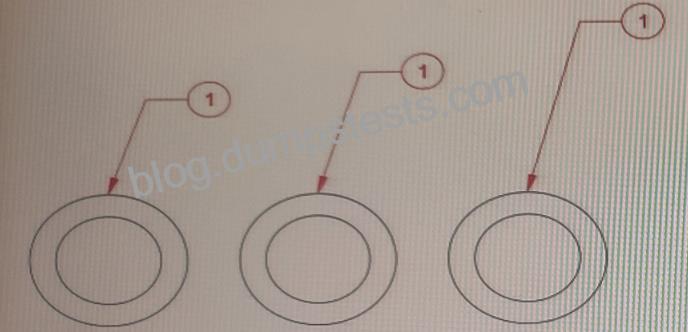

You have three multileaders as shown in exhibit 1. (Refer to the exhibit 1 tab.)

You need to change the display of the multileaders to match the multileaders in exhibit. (Refer to the exhibit 2 tab.)

Which command should you use?

Align Leader

Collect Leader

Remove Leader

Add Leader

Explanation
The command that you should use is B. Collect Leader1. The collect leader option groups multiple leaders into one multileader object with a common landing line1. This option is useful when you want to create a single label or callout for multiple objects2.
To use this option, you need to select the MLEADER command and then select Collect Leader from the Options menu. Then you can select two or more existing multileaders that have similar properties and press Enter. The selected multileaders will be collected into one multileader object with a common landing line1.
