Mar-2024 F5 303 Actual Questions and Braindumps [Q248-Q267]

303 F5

admin -

March 2, 2024

4/5 - (1 vote)

Mar-2024 F5 303 Actual Questions and Braindumps

303 Dumps To Pass F5 Exam in 24 Hours – DumpsTests

F5 303 (BIG-IP ASM Specialist) exam is designed to test an individual’s knowledge and skills in the area of F5 BIG-IP Application Security Manager (ASM). BIG-IP ASM Specialist certification is ideal for professionals who want to demonstrate their expertise in securing applications with the BIG-IP ASM solution. 303 exam covers a wide range of topics, including configuring and managing ASM policies, understanding web application vulnerabilities, and implementing security best practices.

F5 303 (BIG-IP ASM Specialist) Exam is a certification exam designed for IT professionals who are seeking to validate their knowledge and skills in the field of application security. As application security is a critical component of any organization’s IT infrastructure, this certification can help professionals demonstrate their proficiency in implementing and managing security policies on F5 BIG-IP Application Security Manager (ASM) devices.

Q248. A user wants to use the iHealth Upgrade Advisor to determine any issues with upgrading TMOS from 13.0 to
13.1.
Where can the user generate the QKView to upload to iHealth?

System > Software Management

System > Archives

System > Configuration

System > Support

Q249. An TLM Specialist has an Exchange that must use the LTM device to route traffic to the internet.
Which SNAT/NAT configure allows the Exchange server’s traffic access the internet through the LTM device?

NAT

SNAT Pool

SNAT List

SNAT Automap

Q250. An LTM Specialist is troubleshooting an HTTP monitor. The pool member is accessible directly through a browser, but the HTTP monitor is marking the pool member as down.
GET / HTTP/1.1
HTTP/1.1 400 Bad Request
DatE. Tue, 23 Oct 2012 21:39:07 GTM
Server: Apache/2.2.22 (FreeBSD) PHP/5.4.4
mod_ssl/2.2.22 OpenSSL/0.9.8q DAV/2
Content-LengtH. 226
Connection: close
Content-TypE. text/html; charset=iso-8859-1
How should the LTM Specialist resolve this issue?

Add ‘200 OK’ to the monitor’s receive string.

Add ‘Connection: closern’ to the monitor’s send string.

Change the interval on the monitor from 5 seconds to 30 seconds.

Change the HTTP version in the send string from HTTP/1.1 to HTTP/1.0.

Q251. A configuration change is made on the standby member of a device group.
What is displayed as “Recommended Action” on the Device Management Overview screen?

Force active member of device group to standby

Activate device with the most recent configuration

Synchronize the active member configuration to the group.

Synchronize the standby member configuration to the group

Q252. Two LTM devices must be manually configured to restrict in the same Device Group.
What is the correct order of steps to meet this requirement?

Configure VLAN, Configure-Sync IP, Configure Failover type, Establish Device Trust, Sync Device Trust, Create type, Establish Device Sync Device Trust, Create Device Group.

Configure VLAN, Configure Self-IPs, Configure Config-Sync IP.Configure Failover type, Establish Device Trust, Sync Device Trust, Create Device Group.

Configure Self-IPs, Configure VLAN, Configure Config-Sync IP. Configure Failover type, Establish Device Trust, Sync Device Trust, Create Device Group

Configure VLAN, Configure Config-Sync IP. Configure Self-IPs. Configure Failover type. Establish Device Trust, Create Device Group

Q253. An HA pair of LTM devices configured in Active-Standby mode stops responding to traffic and causes an outage. The Active device becomes Standby, but the partner device stays in Standby mode instead of taking over as Active. A reboot and restart of the services brings the LTM device to Active mode for a short time, but then it goes into Standby mode again.
Which two configuration components caused this condition? (Choose two.)

VLAN Fail-safe

System Fail-safe

Gateway Fail-safe

Switch Board Failure

Link down on Failover

Q254. During a high-demand traffic event, the BIG-IP Administrator needs to limit the number of new connections per second allowed to a Virtual Server.
What should the administrator apply to accomplish this task?

An HTTP Compression profile to the Virtual Server

A connection rate limit to the Virtual Server

A connection limit to the Virtual Server

A OneConnect profile to the Virtual Server

Q255. A new web application is being deployed Mutual SSL authentication must be used to authenticate clients.
Which of the following two tasks must be completed to meet therequirements? (Choose two)

configure the server SSL profile with “Client Certificate” Set to require

configure the client SSL profile with “Client Certificate” set to require

instruct the desktop team to update the web browser to the most recent release

generate a CSR to register a certificate with the CA

configure the client SSL profile with the Trusted .Certificate Authorities

Q256. — Exhibit –

— Exhibit —
Refer to the exhibit.
An LTM Specialist configures a virtual server that balances HTTP connections to a pool of three application servers. Approximately one out of every three connections to the virtual server fails.
Which two actions will resolve the problem? (Choose two.)

Assign a custom HTTP monitor to the pool.

Enable SNAT automap on the virtual server.

Verify that port lockdown is set to allow port 80.

Verify the default gateway on the application servers.

Increase the TCP timeout value in the default TCP profile.

Q257. The end users of a web application need to verify that their browsers received the complete message-body from the web server.
Which HTTP header will accomplish this?

Range

Expect

Accept-Ranges

Content-Length

Q258. Refer to the exhibit.

Which Pool Members are receiving traffic?

Serv1, serv2,serv3, serv4

serv1, serv3

serv1, serv3, serv4

serv1

Q259. An LTM device an application that requires all connections to be secured via SSL The device must verify that request contain a specific cookie before allowing the request to be sent to the pool member.
Which virtual server type should an LTM Specialist configure on the LTM device?

Stateless

Performance (HTTP)

Standard

Performance (Layer 4)

Forwarding (IP)

Q260. What is the effect of an iRule error such as referencing an undefined variable?

The iRule execution will continue with the next statement.

The execution of the current event within the iRule will be terminated.

The iRule execution will be terminated, and both the client and server side connections will be reset.

The connection will continue, but the iRule will NOT be executed again for the lifetime of the connection.

Q261. An LTM device is deployed in a one-armed topology. The virtual server, clients, and web servers are connected on the LTM device internal VLAN. A client tries to connect to the virtual server and is unable to establish a connection. A packet capture from the LTM device internal VLAN shows that the HTTP request is being forwarded to the web server.
From which two additional locations should protocol analyzer data be collected? (Choose two.)

network interface of web server

network interface of client machine

internal VLAN interface of LTM device

external VLAN interface of LTM device

any network interface of the Internet firewall

Q262. An LTM Specialist reports that an application si no longer reachable after it has beenupgraded.
Nothing has been changed in the configuration on the LTM device.

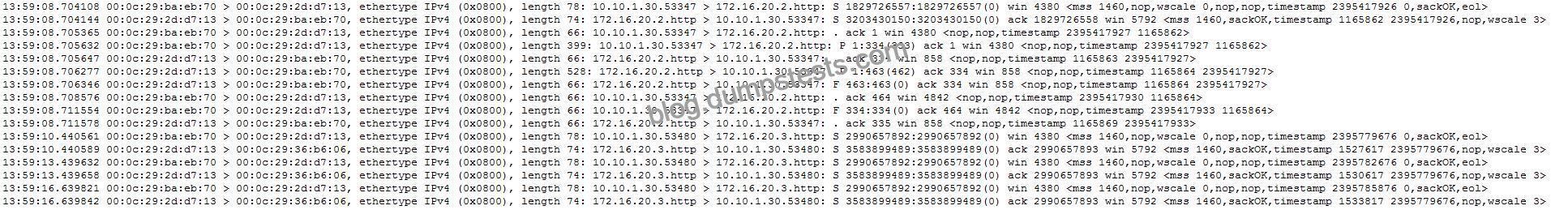

The logs indicates that health monitors to all servers have failed as shown:
What should the LTM Specialist verify next?

That the TCP hand shake with the servers is stall completed using tcpdump

That the custom receive string for the HTTP monitor has changed with the upgrade

That the can still ping the servers from te BIG_ IP device.

That the firewall between the BIG-ip device and servers is still allowing HTTP

Explanation
The log shows that tcp detection is normal, but http detection is abnormal. So we should pay attention to the detection problem of http level

Q263. An LTM Specialist needs to configures virtual server that uses PVA or OPVA Which virtual server type should be used?

Stateless

Performance (HTTP)

Standard

Performance (Layer 4)

Q264. A BIG-IP Administrator applied the latest hotfix to an inactive boot location by mistake, and needs to downgrade back to the previous hotfix.
What should the BIG-IP Administrator do to change the boot location to the previous hotfix?

Uninstall the newest hotfix and reinstall the previous hotfix

Reinstall the base version and install the previous hotfix

Reinstall the previous hotfix and re-activate the license

Uninstall the base version and restore the UCS

Q265. Given the iRule:
when HTTP_REQUEST {
if {([HTTP::username] ne “”) and ([HTTP::password] ne “”) } {
log local0. “client ip [IP::remote_addr] credentials provided [HTTP::username] [HTTP::password]”} else { pool old_application_pool
}
}
The associated virtual server has a default pool named new_application_pool.
Which functionality does the iRule provide?

Allows clients with credentials to access the old_application_pool and logs the access of clients without credentials to the new_application_pool.

Allows clients without credentials to access the old_application_pool and logs the access of clients with credentials to the new_application_pool.

Allows clients with credentials to access the old_application_pool and logs the attempted access of clients with credentials to the new_application_pool.

Allows clients without credentials to access the old_application_pool and logs the attempted access of clients without credentials to the new_application_pool.

Q266. An LTM device configured with a management IP address and route and a series of self-IPs and TMM routes.Both management and TMM have a routing entry for 101 10/24 Application traffic is being load balanced and sent to pool member 10.1.1.123 with SNAT Automap and configured.
Which route will the LTM device use?

TMM route regardless of the management port status

both routes, which will duplicate traffic on both management and TMM interface

equal cost multipath load balancing via both routes

management route when TMM interface is down or TMM is offline

management route regardless of the managementport status

Q267. An HTTP monitor is created and assigned to a pool with the following non-default configuration:
Interval: 7 seconds
Timeout: 22 seconds
Reverse: Yes
Send String: GET/status.htmlHTTP/1.1/r/nHost:test.example.com/r/nConnector:Close Receive String: Up The HTTP server sends the following response:

What is the resulting pool status?
