H12-821_V1.0-ENU Exam Preparation Material with New H12-821_V1.0-ENU Dumps Questions [Q268-Q289]

admin -

March 20, 2024

5/5 - (2 votes)

H12-821_V1.0-ENU Exam Preparation Material with New H12-821_V1.0-ENU Dumps Questions

H12-821_V1.0-ENU 2024 Training With 966 QA’s

The HCIP-Datacom-Core Technology V1.0 certification is particularly relevant for IT professionals who work in the telecommunications, Internet, and network industries. HCIP-Datacom-Core Technology V1.0 certification demonstrates a deep understanding of the latest data communication technologies and best practices, as well as the ability to design, deploy, and manage complex data communication networks. The HCIP-Datacom-Core Technology V1.0 certification is also a stepping stone to higher-level certifications offered by Huawei, such as the HCIE-Datacom certification.

NEW QUESTION 268
Regarding the multicast ASM model and the SSM model, which of the following statements are correct? (Multiple choice)

In the SSM model, the receiver already knows the specific location of the multicast source in advance through other means

SSM directly establishes a multicast forwarding tree between the receiver and the multicast source

In the ASM model, the receiver cannot instruct the location of the multicast source in advance

SSM and ASM use the same multicast address range

NEW QUESTION 269
If two Huawei routers establish a BFD session, and the sending interval of AR1 is 30 milliseconds, and the receiving interval is 40 milliseconds; the sending interval of AR2 is 40 milliseconds, and the receiving interval is 30 milliseconds. Which of the following statements about the post-negotiation time interval is correct?

After negotiation, AR1 sends at an interval of 40 milliseconds and receives at an interval of 40 milliseconds

After negotiation, AR2 sends at an interval of 30 milliseconds and receives at an interval of 40 milliseconds

After negotiation, AR1 sends at an interval of 30 milliseconds and receives at an interval of 30 milliseconds

After negotiation, AR2 sends at an interval of 40 milliseconds and receives at an interval of 30 milliseconds

NEW QUESTION 270
Which statement about the VRRP protocol version is correct? (Multiple choice)

VRRPv2 only works with IPv4

VRRPv3 only works with IPv6

VRRPv3 does not support authentication

VRRPv2 supports authentication

NEW QUESTION 271
A route-policy can have multiple nodes, different node numbers are identified by seq-number, and the relationship between different seq-number parts is an “or” relationship.

TRUE

FALSE

NEW QUESTION 272
Route introduction refers to the operation of publishing routing information from one routing protocol to another routing protocol.
Which of the following statements about routing imports is correct? (Multiple choice)

When implementing route import, you can also deploy route air control, so as to realize the flexible control of correct business traffic

By importing routes, routing information can be transferred between different routing protocols

The routing protocol itself has the anti-loop feature, so there is no need to consider the loop problem when the routes enter each other.

When importing routes, it is necessary to pay attention to the fact that different vendors may have different routing priority agreements

NEW QUESTION 273
SA (Security Association) is a parameter that must be negotiated when an IPsec tunnel is established, so which of the following parameters is used to uniquely identify SA? (Multiple choice)

Source MAC address

Destination IP address

Security Protocol Number

Header checksum of the network layer header

SPI (Security Parameter Index)

Source IP address

NEW QUESTION 274
An ACL rule is: rule 5 permit ip source 10.1.1.0 255.0.254.255 Which of the following IP addresses can be matched by the permit rule? (Multiple choice)

9.1.1.1

6.1.3.1

7.1.2.1

8.2.2.1

NEW QUESTION 275
Use the default-route-advertise command in OSPF to advertise the default route to the common OSPF area. When there is no default route in the area, use ____ to force the advertisement. (Please fill in lowercase English)

always

NEW QUESTION 276
Regarding the load sharing description of VRRP, which is correct? (Multiple choice)

The load sharing method refers to the establishment of two or more backup groups, and multiple routers carry services at the same time

When configuring priority, the VRRP masters of the three virtual routers can be on different routers

Multiple virtual routers can be created on one interface of the router, so that the router can be used as the Master router in one virtual router, and at the same time as the Backup router in other virtual routers

The load sharing method means that multiple routers undertake business at the same time, so the load sharing method requires two or more virtual routers

NEW QUESTION 277
What types of metrics does the IS-IS protocol support? (Multiple choice)

default

Narrow

wide

Tos

NEW QUESTION 278
In a multi-level RR scenario, the first-level RR will be connected to a large number of second-level RRs, which may cause the BGP routing table of the first-level RR to overflow. What method can be used to reduce the risk of overflowing the BGP routing table of the first-level RR?

ORF

Routing Control

Route aggregation

Set the same Cluster–ID

NEW QUESTION 279
If a modular switch only supports the use of cluster cards on the main control board to establish a cluster connection, it means that the modular switch uses CSS2 stacking technology.

TRUE

FALSE

NEW QUESTION 280

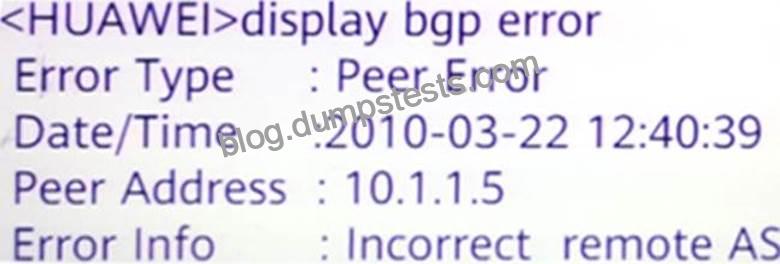

The following is a router BGP output information, which of the following regarding the description of this information is false?

It may be caused by an incorrect neighbor address

Error Type shows that it is caused by an error in the neighbor relationship

The error occurred at 12:40:39 on March 22, 2010

The router’s neighbor address is 10.1.1.5

NEW QUESTION 281
Which of the following routing protocols support publishing default routes through command configuration? (Multiple choice)

BGP

IGMP

ISIS

OSPF

NEW QUESTION 282
How long is the default DHCP address pool lease period?

1 month

1 hour

1 week

1 day

NEW QUESTION 283
On the VRP platform, when we introduce OSPF routing to ISIS, if COST is not specified, the cost value will be set to 16.

True

False

NEW QUESTION 284

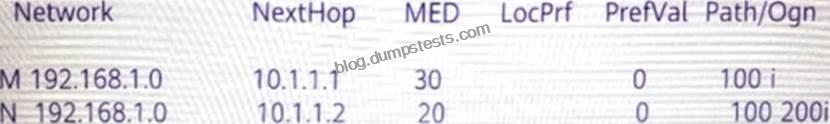

The router receives two BGP routes with the following attributes, please select the best route according to the BGP routing rules:

The best route is route M, due to its AS_Path is shorter than route N

The best route to route N, due to its MED is smaller than route M

The best route to route N, due to its AS_Path is longer than route N

The best route to route M, due to its MED is larger than route N

NEW QUESTION 285

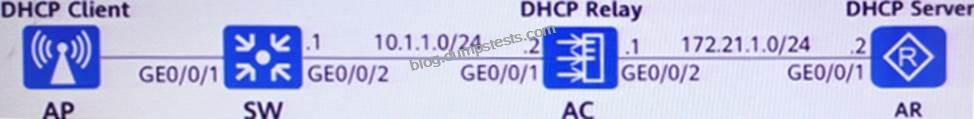

As shown in the figure, the management VLAN of LAN is VLAN 10. AP obtains IP address through DHCP, and the network segment is 10.1. 1.0/24 AP, AC and AR are respectively DHCP client, DHCP relay device and DHCP server. (Multiple choice)

Which of the following is the correct configuration of the DHCP relay device and DHCP server?

[AC] dhcp server group AP [AC-dhcp-server-group-AP] dhcp-server 172.21.1.2 [AC-dhcp-server-group-AP] quit [AC] interface Vlanif 10 [AC-Vlanif10] dhcp select relay [AC-Vlanif10] dhcp relay server-select AP [AC-Vlanif10] quit

[AR] ip pool AP [AR-ip-pool-AP] network 172.21.1.0 mask 24 [AR-ip-pool-APJ gateway-list 172.21.1.2 [AR-ip-pool-AP] excluded-ip-address 172.21.1.1 [AR-ip-pool-AP] quit [AR] interface GigabitEthernet 0/0/1 LAR-GigabitEthernet0/0/1] dhcp select global [AR-GigabitEthernet0/0/1] quit [AR]ip route-static 10.1.1.0 255.255.255.0 172.21.1.1

[Ac]dhcp server group AP [AC-dhcp-server-group-AP] dhep-server 10.1.1.2 [AC-dhcp server group-AP] quit [AC] interface Vlanif 10 [AC-V1anif10] dhcp select relay [AC-Vlanif10] dhcp relay server-select AP [AC-Vlanif10] quit

[AR] ip pool AP [AR-ip pool-AP] network10.1.1.0 mask 24 [AR-ip-pool-AP] gateway-list 10.1.1.2 [AR-ip-pool-AP] excluded ip-address 10.1.1.1 [AR-ip-pool-AP] quit [AR] interface GigabitE thernet 0/0/1 [AR-GigabitEthernet0/0/1] dhcp select global [AR-Gigabi tEthernet0/0/1] quit [AR] ip route-static 10.1.1.0 255.255.255.0 172.21. 1.1

NEW QUESTION 286
Which of the following trees have multi-channel protocols? (Multiple choice)

Telnet

FTP

H.323

SMTP

NEW QUESTION 287

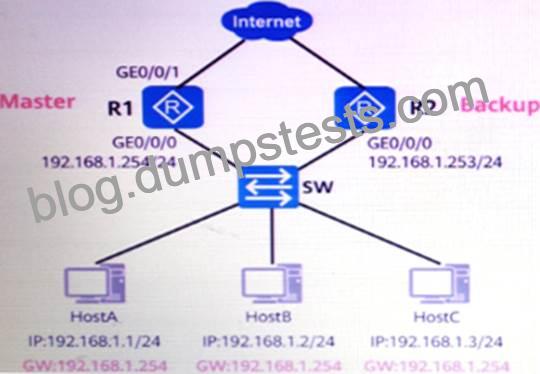

As shown in the figure, R1 and R2 form a VRRP backup group 1. By executing the vrrp vrid 1 vitual-ip () command on R1, you can make it the IP address owner, let R1 be the Master and R2 as the Backup.

192.168.1.254

NEW QUESTION 288
Will setting the community attribute of the route through the routing policy affect the route selection?

It can be indirectly affected. You can classify routes by setting the Community attribute of the route, and then set different routing-related attributes according to the category, such as Local_Pre, MED, etc., so as to achieve the purpose of influencing routing

It cannot be affected because the Community attribute of the route is a non-transitional attribute and cannot be transmitted between routers

It can be indirectly affected. You can classify routes by setting the community characteristics of routing, and then set different routing-related attributes according to the category. These attributes only include Loacal_Pre and MED, so as to achieve the purpose of influencing the routing

After the router receives the route update with the Commmity attribute of No_ Advertise, it will not be published outside the local AS

NEW QUESTION 289
Will setting the Community attribute of the route through the routing policy affect the route selection?

It can be indirectly affected. By setting the Community attribute of the route, the route can be classified, and then set different route selection-related attributes according to the category, such as Local_Pre, MED, etc., to achieve the purpose of affecting route selection

It cannot be affected, because the Community attribute of the route is a non-transitional attribute and cannot be passed between routers

It can be affected indirectly. By setting the Community attribute of the route, the route can be classified, and then different attributes related to route selection can be set according to the category. These attributes only include Loacal_Pre and MED, so as to achieve the purpose of affecting route selection

After the router receives the routing update whose Commmity attribute is No_ Advertise, it will not advertise it outside the local AS.
