[Jul 08, 2025] New Real 300-730 Exam Dumps Questions [Q125-Q139]

5/5 - (1 vote)

[Jul 08, 2025] New Real 300-730 Exam Dumps Questions

Pass Your 300-730 Exam Easily with Accurate Implementing Secure Solutions with Virtual Private Networks PDF Questions

Q125. Two VPN clients have established SSL VPN connections to the outside interface on same Cisco Secure Firewall ASA, but they cannot communicate with each other. Which CLI command must be entered on the Cisco Secure Firewall ASA to enable this communication?

no nat-control

sysopt connection permit-vpn

same-security-traffic permit intra-interface

same-security-traffic permit inter-interface

By default, Cisco Secure Firewall ASA does not allow traffic to pass between two VPN clients connected to the same interface (e.g., the outside interface for SSL VPN).
To allow communication between these VPN clients, you need to enable intra-interface traffic using the following command:
same-security-traffic permit intra-interface
This allows traffic to hairpin (U-turn) on the same interface, enabling VPN-to-VPN communication.

Q126. Which IKE identity does an IOS/IOS-XE headend expect to receive if an IPsec Cisco AnyConnect client uses default settings?

*$SecureMobilityClient$*

*$AnyConnectClient$*

*$RemoteAccessVpnClient$*

*$DfltlkeldentityS*

https://www.cisco.com/c/en/us/support/docs/security/flexvpn/200555-FlexVPN-AnyConnect- IKEv2-Remote-Access.html

Q127. What is a characteristic of GETVPN?

An ACL that defines interesting traffic must be configured and applied to the crypto map.

Quick mode is used to create an IPsec SA.

The remote peer for the IPsec session is configured as part of the crypto map.

All peers have one IPsec SPI for inbound and outbound communication.

Q128. Which method dynamically installs the network routes for remote tunnel endpoints?

policy-based routing

CEF

reverse route injection

route filtering

Reference:
<https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_vpnav/configuration/12-4t/sec-vpn- availability-12-4t-book/sec-rev-rte-inject.html>

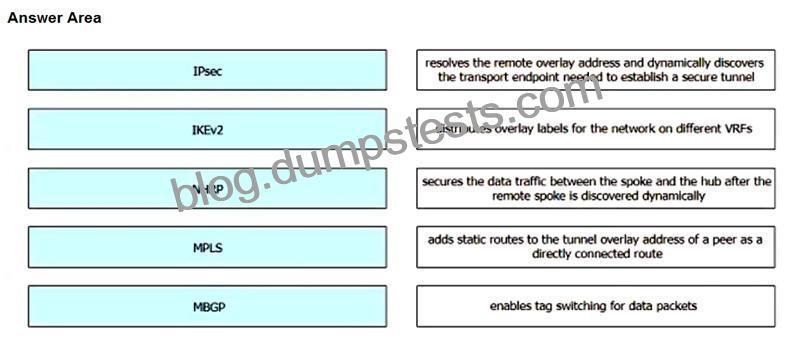

Q129. Drag and Drop Question
Drag and drop the GETVPN components from the left onto the descriptions on the right.

Q130. Which DMVPN feature allows spokes to be deployed with dynamically assigned public IP addresses?

2547oDMVPN

NHRP

OSPF

NAT Traversal

Q131. A user is trying to log in to a Cisco ASA using the clientless SSLVPN feature and receives the error message “clientless (browser) SSLVPN access is not allowed”. Which step should the Cisco ASA administrator take to resolve this issue?

Enable the clientless VPN protocol on the group policy.

Validate that the correct license is in use on the ASA for WebVPN.

Increase the number of simultaneous logins allowed on the group policy.

Verify that a user account exists in the local AAA database for the user.

https://www.cisco.com/c/en/us/support/docs/security-vpn/webvpn-ssl-vpn/119417-config-asa-
00.html#anc12

Q132. Which feature allows the ASA to handle nonstandard applications and web resources so that they display correctly over a clientless SSL VPN connection?

single sign-on

Smart Tunnel

WebType ACL

plug-ins

Section: Remote access VPNs
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/security/asa/asa90/configuration/guide/ asa_90_cli_config/vpn_clientless_ssl.html#29951

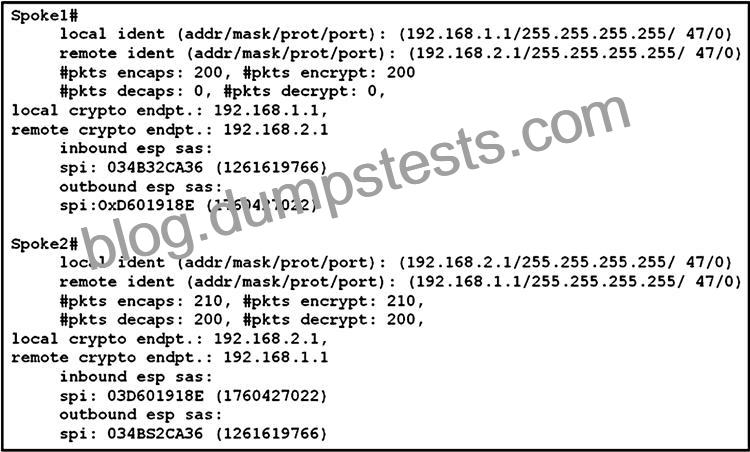

Q133. Refer to the exhibit.

An engineer is troubleshooting a new GRE over IPsec tunnel. The tunnel is established but the engineer cannot ping from spoke 1 to spoke 2. Which type of traffic is being blocked?

ESP packets from spoke2 to spoke1

ISAKMP packets from spoke2 to spoke1

ESP packets from spoke1 to spoke2

ISAKMP packets from spoke1 to spoke2

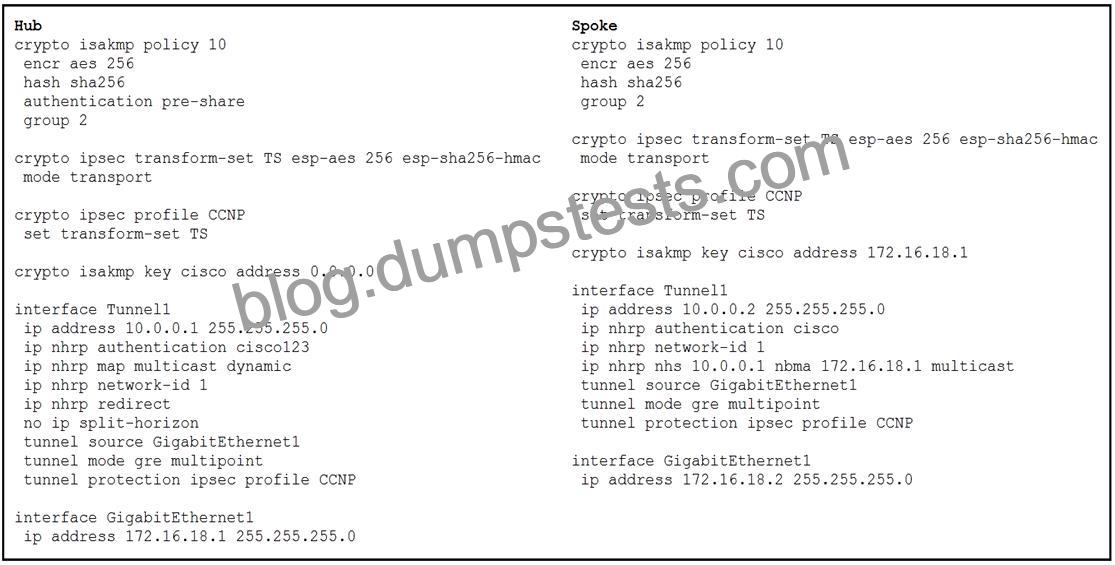

Q134. Refer to the exhibit.

The DMVPN spoke is not establishing a session with the hub. Which two actions resolve this issue? (Choose two.)

Change the spoke nhs to 172.16.18.1 and the nbma to 10.0.0.1.

Change the transform set to mode tunnel.

Change the ISAKMP policy authentication on the spoke to pre-shared.

Change the ISAKMP key address on the spoke to 0.0.0.0.

Change the nhrp authentication key on the spoke to cisco123.

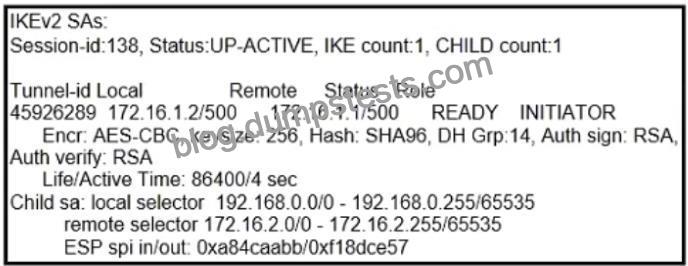

Q135. Refer to the exhibit. A Cisco ASA is configured as a client to a router running as a FlexVPN server. The router is configured with a virtual template to terminate FlexVPN clients. Traffic between networks 192.168.0.0/24 and 172.16.20.0/24 does not work as expected. Based on the show crypto ikev2 sa output collected from the Cisco ASA in the exhibit, what is the solution to this issue?

Modify the crypto ACL on the router to permit network 192.168.0.0/24 to network 172.16.20.0/24.

Modify the crypto ACL on the ASA to permit network 192.168.0.0/24 to network 172.16.20.0/24.

Modify the crypto ACL on the ASA to permit network 172.16.20.0/24 to network 192.168.0.0/24.

Modify the crypto ACL on the router to permit network 172.16.20.0/24 to network 192.168.0.0/24.

The show crypto ukev2 sa output from the ASA, the local selector is 192.168.0.0/24 the remote selector is 172.16.2.0/24 ( which is wrong, should be .20.0/24) . so, the ACL in the ASA should be to permit 192.168.0.0/24 to 172.16.20.0/24.

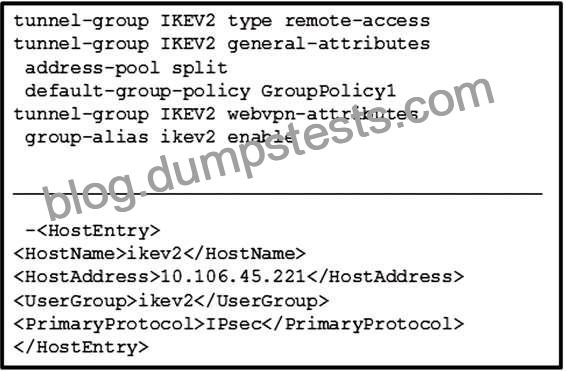

Q136.

Refer to the exhibit. The customer can establish a Cisco AnyConnect connection without using an XML profile. When the host “ikev2” is selected in the AnyConnect drop down, the connection fails. What is the cause of this issue?

The HostName is incorrect.

The IP address is incorrect.

Primary protocol should be SSL.

UserGroup must match connection profile.

Section: Troubleshooting using ASDM and CLI
Explanation/Reference: https://community.cisco.com/t5/security-documents/anyconnect-xml-settings/ta-p/3157891

Q137. A network engineer is implementing a FlexVPN tunnel between two Cisco IOS routers. The FlexVPN tunnels will terminate on encrypted traffic on an interface configured with an IP MTU of 1500, and the company has a security policy to drop fragmented traffic coming into or leaving the network. The tunnel will be used to transfer TFTP data between users and internal servers. When the TFTP traffic is not traversing a VPN, it can have a maximum IP packet size of 1500. Assuming the encrypted payload will add 90 bytes, which configuration allows TFTP traffic to traverse the FlexVPN tunnel without being dropped?

Set the tunnel IP MTU to 1500.

Set the tunnel tcp adjust-mss to 1460.

Set the tunnel IP MTU to 1400.

Set the tunnel tcp adjust-mss to 1360.

Q138. An engineer must configure remote desktop connectivity for offsite admins via clientless SSL VPN, configured on a Cisco ASA to Windows Vista workstations. Which two configurations provide the requested access? (Choose two.)

Telnet bookmark via the Telnet plugin

RDP2 bookmark via the RDP2 plugin

VNC bookmark via the VNC plugin

Citrix bookmark via the ICA plugin

SSH bookmark via the SSH plugin

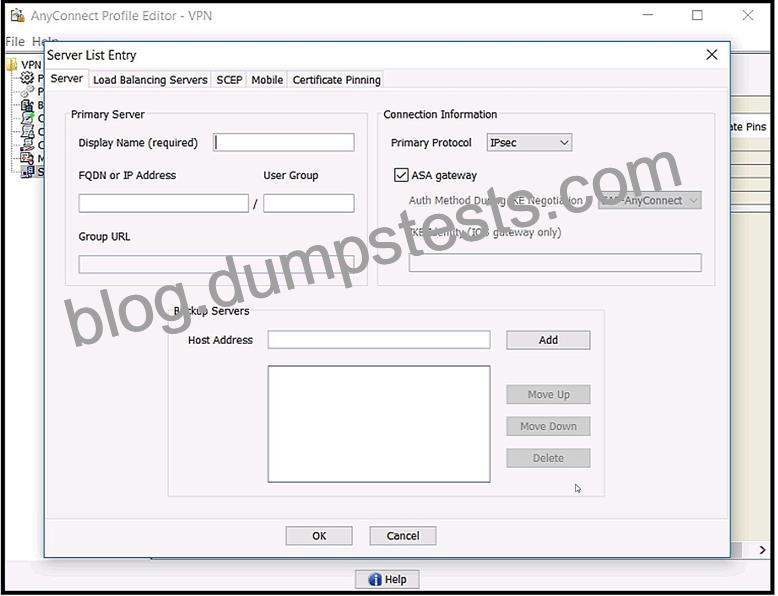

Q139. Refer to the exhibit. Which value must be configured in the User Group field when the Cisco AnyConnect Profile is created to connect to an ASA headend with IPsec as the primary protocol?

address-pool

group-alias

group-policy

tunnel-group

https://www.cisco.com/c/en/us/td/docs/security/vpn_client/anyconnect/anyconnect41/administrati on/guide/b_AnyConnect_Administrator_Guide_4-1/configure-vpn.html
