[2025] HPE6-A85 by ACA Campus Access Associate Actual Free Exam Practice Test

Free ACA Campus Access Associate HPE6-A85 Exam Question

QUESTION 59
Which flew in a Layer 3 IPv4 packet header is used to mitigate Layer 3 route loops?

Checksum

Time To Live

Protocol

Destination IP

The field in a Layer 3 IPv4 packet header that is used to mitigate Layer 3 route loops is Time To Live (TTL). TTL is an 8-bit field that indicates the maximum number of hops that a packet can traverse before being discarded. TTL is set by the source device and decremented by one by each router that forwards the packet. If TTL reaches zero, the packet is dropped and an ICMP Internet Control Message Protocol (ICMP) Internet Control Message Protocol (ICMP) is a network protocol that provides error reporting and diagnostic functions for IP networks. ICMP is used to send messages such as echo requests and replies (ping), destination unreachable, time exceeded, parameter problem, source quench, redirect, etc. ICMP messages are encapsulated in IP datagrams and have a specific format that contains fields such as type, code, checksum, identifier, sequence number, data, etc. ICMP messages can be verified by using commands such as ping, traceroute, debug ip icmp, etc. message is sent back to the source device. TTL is used to mitigate Layer
3 route loops because it prevents packets from circulating indefinitely in a looped network topology. TTL also helps to conserve network resources and avoid congestion caused by looped packets.
The other options are not fields in a Layer 3 IPv4 packet header because:
– Checksum: Checksum is a 16-bit field that is used to verify the integrity of the IP header. Checksum is calculated by the source device and verified by the destination device based on the values of all fields in the IP header. Checksum does not mitigate Layer 3 route loops because it does not limit the number of hops that a packet can traverse.
– Protocol: Protocol is an 8-bit field that indicates the type of payload carried by the IP datagram. Protocol identifies the upper-layer protocol that uses IP for data transmission, such as TCP Transmission Control Protocol (TCP) Transmission Control Protocol (TCP) is a connection-oriented transport layer protocol that provides reliable, ordered, and error-checked delivery of data between applications on different devices. TCP uses a three-way handshake to establish a connection between two endpoints, and uses sequence numbers, acknowledgments, and windowing to ensure data delivery and flow control. TCP also uses mechanisms such as retransmission, congestion avoidance, and fast recovery to handle packet loss and congestion. TCP segments data into smaller units called segments, which are encapsulated in IP datagrams and have a specific format that contains fields such as source port, destination port, sequence number, acknowledgment number, header length, flags, window size, checksum, urgent pointer, options, data, etc. TCP segments can be verified by using commands such as telnet, ftp, ssh, debug ip tcp transactions, etc ., UDP User Datagram Protocol (UDP) User Datagram Protocol (UDP) is a connectionless transport layer protocol that provides

QUESTION 60
Based on the “show ip route” output on an Aruba CX 8325, what type of route is “10.20.0.0/22, vrf default via
10.1.1.1, [110/200]”?

connected

local

OSPF

static

The route “10.20.0.0/22, vrf default via 10.1.1.1, [110/200]” indicates that it is an OSPF route. This is evidenced by the administrative distance and metric “[110/200]” where 110 is the default administrative distance for OSPF routes.

QUESTION 61

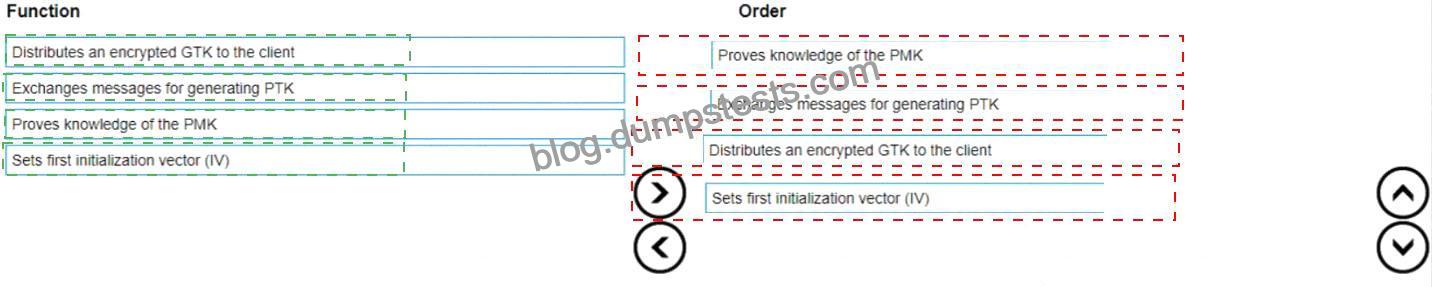

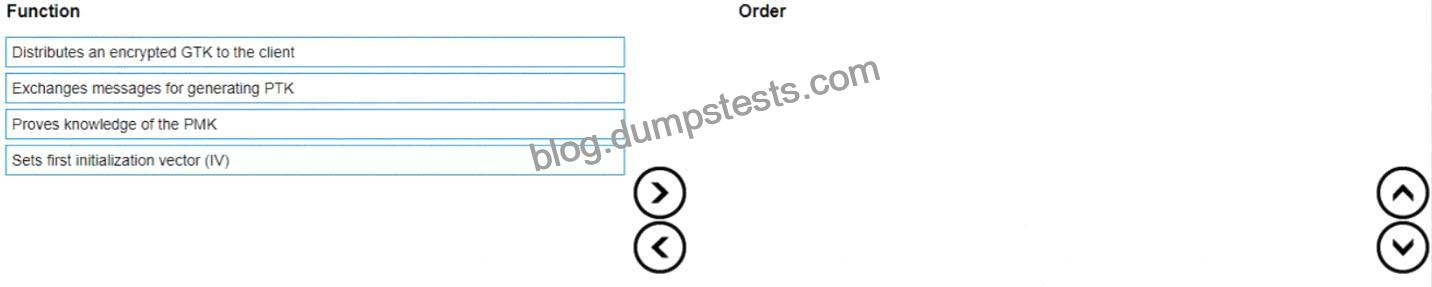

List the WPA 4-Way Handshake functions in the correct order.

* Proves knowledge of the PMK
* Exchanges messages for generating PTK
* Distributes an encrypted GTK to the client
* Sets first initialization vector (IV)

QUESTION 62
The customer has a requirement to create authorization policies for their users with Windows 10 clients, with a requirement Tor authorizing both device and user credentials within one Radius session.
What would be the correct solution for the requirement?

ClearPass 6.9 with EAP-TTLS

ClearPass 6.9 with EAP-TLS

ClearPass 6.9 with PEAP

ClearPass 6.9 with EAP-TEAP

EAP-TEAP is a tunnel-based authentication method that supports both device and user authentication within a single RADIUS session. ClearPass 6.9 supports EAP-TEAP as an authentication method for Windows 10 clients. Reference: https://www.arubanetworks.com/techdocs/ClearPass/6.9/Guest/Content/CPPM_UserGuide/EAP-TEAP/EAP-TEAP.htm For the requirement to authorize both device and user credentials within one Radius session, the correct solution would be ClearPass 6.9 with EAP-TEAP (EAP-Tunneled Extensible Authentication Protocol). EAP-TEAP is a tunneling protocol that creates a secure communication channel between the client and the server, allowing for the transmission of multiple authentication transactions within a single session. This capability is particularly useful in scenarios where both user and device credentials need to be verified before granting access to network resources, providing an additional layer of security and ensuring that both the user and the device are authorized to access the network.

QUESTION 63
What are two advantages of a UXl? (Select two.)

A UXl can be used without any internet connection

A UXl helps to calculate the best WiFi channels in a remote location

A UXl behaves like a client/user

A UXl measures the Wi-Fi coverage of all APs in the given location.

A UXl can check different applications, such as HTTP VOIP or Office 365.

Explanation
A UXI (User Experience Insight) is a device that simulates user behavior and tests network performance from the user perspective. It can check different applications, such as HTTP, VOIP, or Office 365, and measure metrics such as latency, jitter, packet loss, and throughput.
References:https://www.arubanetworks.com/products/networking/user-experience-insight/

QUESTION 64

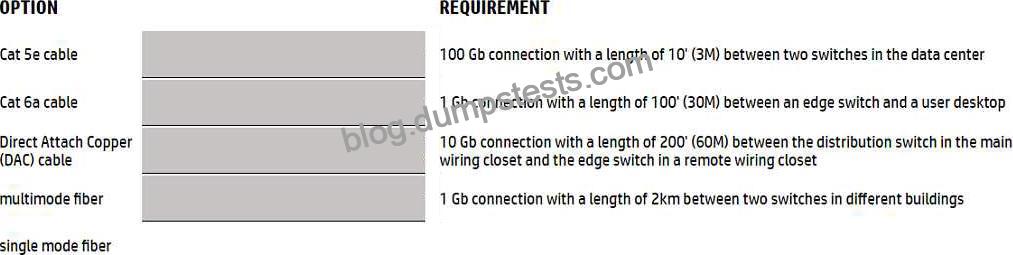

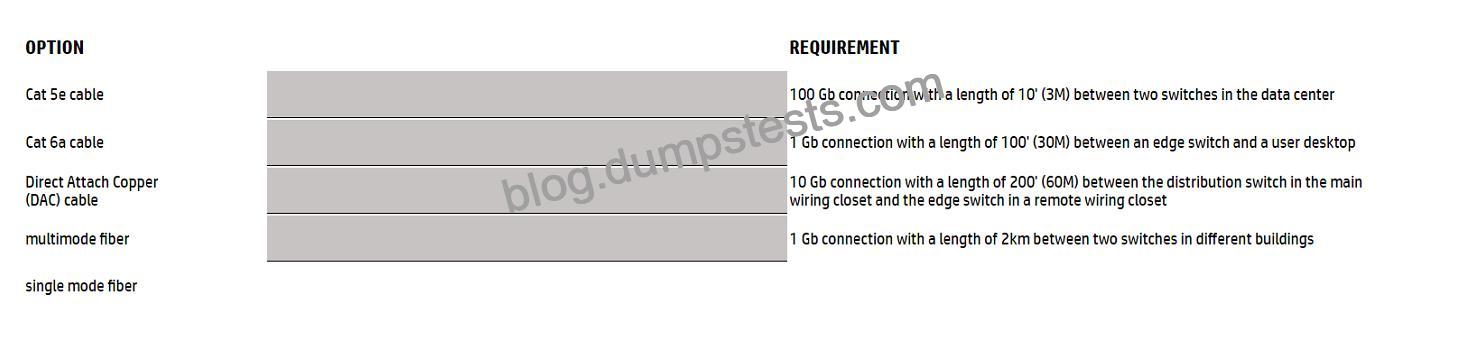

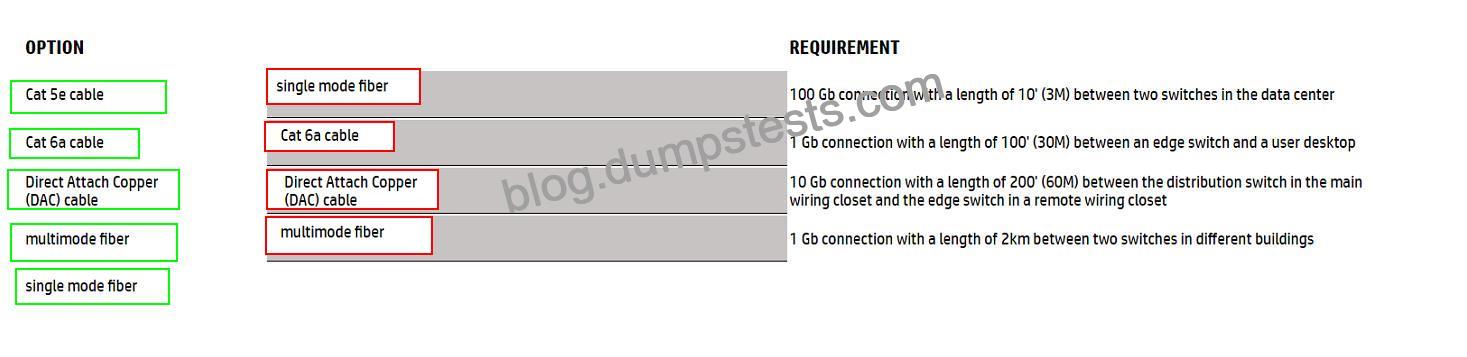

Match the most cost-effective option for cabling each requirement. (All lengths indicate total cable length including patch cable(s), service loops, etc. where used.)

QUESTION 65

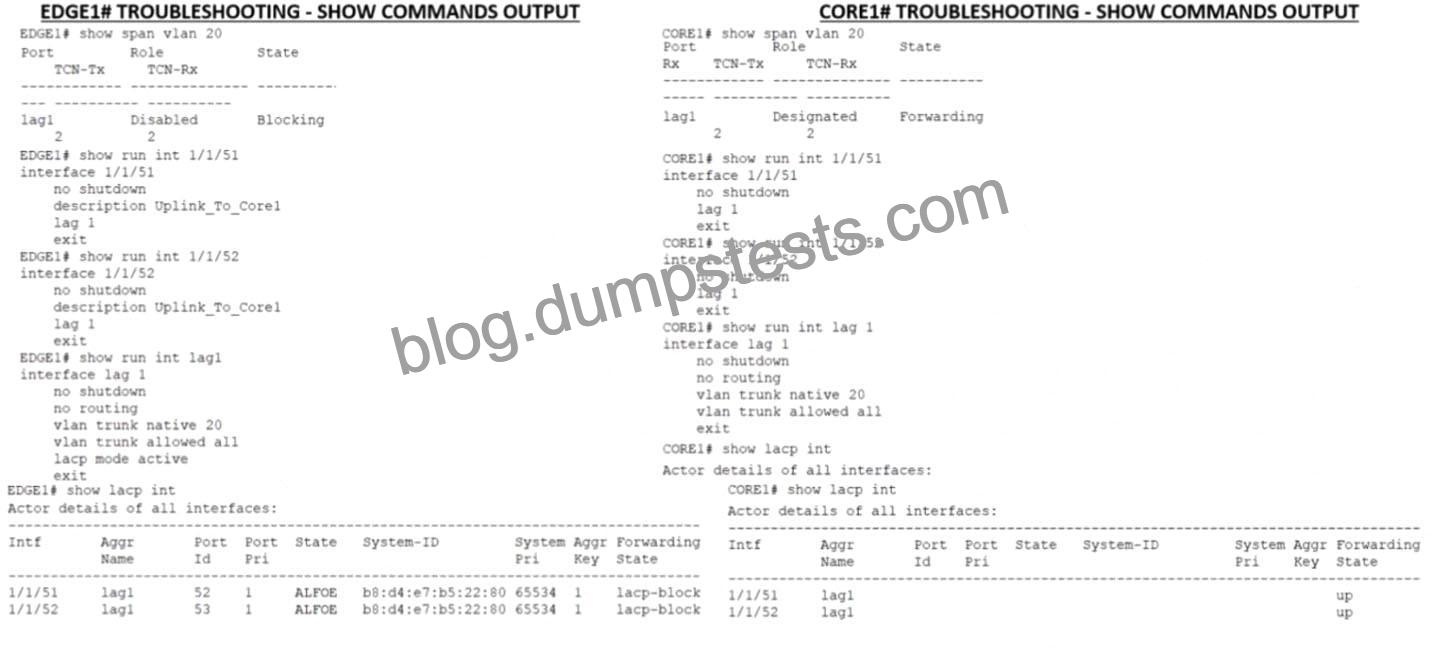

You put in a few show commands on switches EDGE1 and CORE1 to attempt to gather information to troubleshoot the issue Use the show command output images to determine the reason for the EDGE1 uplink being down

The physical interfaces are not members of the correct LAG.

Spanning-Tree block state is preventing the Core uplink from having connectivity to the edge

The Core is connected to the incorrect physical interlaces

LACP is not configured on the Core uplink

LACP is a protocol that allows multiple physical links to be aggregated into a single logical link for increased bandwidth and redundancy. LACP must be configured on both ends of the link for it to work properly. In this case, EDGE1 has LACP configured on its uplink port-channel 1, but CORE1 does not have LACP configured on its corresponding port-channel 1. This causes a mismatch and prevents the link from coming up.References:
https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview
/lacp.htm

QUESTION 66
Which feature can network administrators use to centralized RF planning and optimization service when using an Aruba mobility master architecture?

Airwave

Client Match

AirMatch

Client Wave

AirMatch is a feature that provides centralized RF planning and optimization service for Aruba wireless networks. It uses cloud-based algorithms and machine learning to optimize the RF performance and user experience. Reference: https://www.arubanetworks.com/assets/ds/DS_AirMatch.pdf In Aruba networks, the recommended Virtual Switching Framework (VSF) topologies include the daisy chain plus Multi-Active Detection (MAD) and the ring topology. The daisy chain topology with MAD provides a straightforward and effective way to connect multiple switches in a series while ensuring there is a mechanism in place (MAD) to detect and handle situations where more than one switch in the VSF might become active simultaneously. The ring topology offers redundancy by creating a looped connection pattern among the VSF members, enhancing network resilience and reliability.

QUESTION 67
Two independent ArubaOS-CX 6300 switches with Spanning Tree (STP) settings are interconnected with two cables between ports 1/1/1 and 1/1/2 All four ports have “no shutdown” and “no routing” commands How will STP forward or discard traffic on these ports?

The switch with the lower MAC address will forward on both ports, while the switch with the higher MAC address will forward on both ports

The switch with the lower MAC address will forward on both ports, while the switch with the higher MAC address will discard on one port

The switch with the lower MAC address will discard on one port, while the switch with the higher MAC address will forward on both ports

The switch with the lower MAC address will discard on one port, while the switch with the higher MAC address will discard on one port

Explanation
The way that STP Spanning Tree Protocol. STP is a network protocol that ensures a loop-free topology for any bridged Ethernet local area network by preventing redundant paths between switches or bridges from creating loops that cause broadcast storms, multiple frame transmission, and MAC table instability. STP creates a logical tree structure that spans all of the switches in an extended network and blocks any redundant links that are not part of the tree from forwarding data packets . will forward or discard traffic on these ports is as follows:
STP will elect a root bridge among the two switches based on their bridge IDs, which are composed of a priority value and a MAC address. The switch with the lower bridge ID will become the root bridge and will forward traffic on all its ports.
STP will assign a role and a state to each port on both switches based on their port IDs, which are composed of a priority value and a port number. The port with the lower port ID will become the designated port and will forward traffic, while the port with the higher port ID will become the alternate port and will discard traffic.
In this scenario, since both switches have two cables connected between ports 1/1/1 and 1/1/2, there will be two possible paths between them, creating a loop. To prevent this loop, STP will block one of these paths by discarding traffic on one of the ports on each switch.
Assuming that both switches have the same priority value (default is 32768), the switch with the lower MAC address will have the lower bridge ID and will become the root bridge. The root bridge will forward traffic on both ports 1/1/1 and 1/1/2.
Assuming that both ports have the same priority value (default is 128), port 1/1/1 will have a lower port ID than port 1/1/2 on both switches because it has a lower port number. Port 1/1/1 will become the designated port and will forward traffic, while port 1/1/2 will become the alternate port and will discard traffic.
Therefore, the switch with the lower MAC address will discard traffic on one port (port 1/1/2), while the switch with the higher MAC address will also discard traffic on one port (port 1/1/2).
References: 3 https://en.wikipedia.org/wiki/Spanning_Tree_Protocol

QUESTION 68
Which device configuration group types can a user define in Aruba Central during group creation?
(Select two.)

ESP group

Security group

Ul group

Default group

Template group

In Aruba Central during group creation, users can define various configuration groups to manage settings for multiple devices. A Security group allows you to apply consistent security settings across devices, and a Template group enables you to apply pre-defined configurations to devices. These groups help streamline the deployment and management of network devices in Aruba Central.

QUESTION 69
What is used by network devices to send error and operational information related to IP communications?

Frame Check Sequence (FCS)

User Datagram Protocol (UDP)

Cyclic Redundancy Check (CRC)

Internet Control Message Protocol (ICMP)

ICMP (Internet Control Message Protocol) is used by network devices to send error and operational information related to IP communications. It is used to send messages like “destination unreachable” or
“time exceeded” when there are issues in IP communication

QUESTION 70
Which commands are used to set a default route to 10.4.5.1 on an Aruba CX switch when ln-band management using an SVl is being used?

iP default-gateway 10.4.5.1

ip route 0 0 0.070 10.4 5.1 vrf mgmt

ip route 0.0 0 0/0 10.4.5.1

default-gateway 10.4.5.1

The command that is used to set a default route to 10.4.5.1 on an Aruba CX switch when in-band management using an SVI is being used is ip route 0.0 0 0/0 10.4.5.1 . This command specifies the destination network address (0.0 0 0) and prefix length (/0) and the next-hop address (10.4.5.1) for reaching any network that is not directly connected to the switch. The default route applies to the default VRF Virtual Routing and Forwarding. VRF is a technology that allows multiple instances of a routing table to co-exist within the same router at the same time. VRFs are typically used to segment network traffic for security, privacy, or administrative purposes. , which is used for in-band management traffic that goes through an SVI Switch Virtual Interface. SVI is a virtual interface on a switch that allows the switch to route packets between different VLANs on the same switch or different switches that are connected by a trunk link. An SVI is associated with a VLAN and has an IP address and subnet mask assigned to it12. Reference: 1 https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content/Chp_StatRoute/def-rou.htm 2 https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content/Chp_VRF/vrf-overview.htm

QUESTION 71
You need to troubleshoot an Aruba CX 6200 4-node VSF stack switch that fails to boot correctly Select the option that allows you to access the switch and see the boot options available for OS images and ServiceOS.

Member 2 RJ-45 console port

Member 2 switch mgmt port

Conductor USB-C console port

Conductor mgmt port using SSH

QUESTION 72
You need to troubleshoot an Aruba CX 6200 4-node VSF stack switch that fails to boot correctly Select the option that allows you to access the switch and see the boot options available for OS images and ServiceOS.

Member 2 RJ-45 console port

Member 2 switch mgmt port

Conductor USB-C console port

Conductor mgmt port using SSH

To troubleshoot an Aruba CX 6200 switch that is failing to boot correctly, accessing the switch via the RJ-45 console port on any of its member switches provides direct access to the switch’s console for troubleshooting. This method allows a network technician to interact with the boot process, view boot messages, and access boot options, including the selection of different OS images or ServiceOS for recovery purposes.

QUESTION 73
DRAG DROP

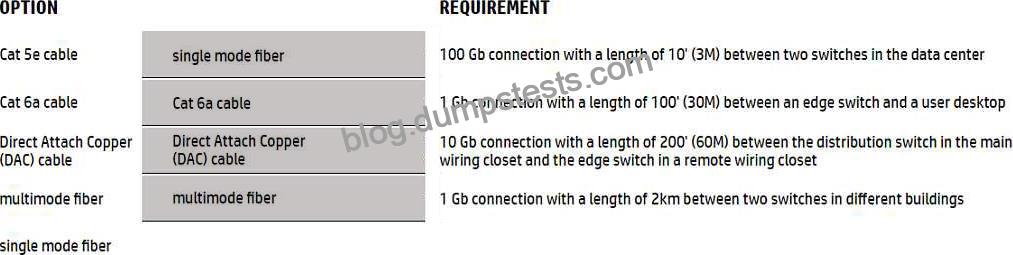

Match the most cost-effective option for cabling each requirement. (All lengths indicate total cable length including patch cable(s), service loops, etc. where used.)

QUESTION 74
A network technician is verifying that a customer successfully connected to the guest network after completing the captive portal. The network technician looks at the access tracker in ClearPass.
Which role should be seen when looking at the OUTPUT tab for the customer’s session?

Guest authenticated

Captive portal login

Captive portal redirect

Guest logon

In the access tracker of ClearPass, after a customer successfully connects to a guest network through a captive portal, the OUTPUT tab should show a role indicating that the user is authenticated, such as “Guest authenticated.” This role confirms that the user has passed the authentication process and has been granted access.

QUESTION 75
You have physical access to an Aruba CX-Switch with unknown/lost credentials. What are the possible steps to rebuild the credentials? (Select two.)

Connect the switch via the console. Then, power cycle the switch.

Press and hold the clear button. Then, power-cycle the switch.

Press and hold the clear button. Then, press the reset button for 2 seconds and release both buttons.

Call Aruba support for a one-time password.

Use boot profile 0.

To regain access to an Aruba CX switch when credentials are unknown or lost, one can press and hold the clear button, then power cycle the switch to reset the password. Additionally, using the boot profile 0 at the boot loader menu can be used to bypass the current startup configuration, which may include the unknown credentials.

QUESTION 76
Match the appropriate QoS concept with its definition.

Explanation:
QoS Quality of Service (QoS) is a set of techniques that manage network resources and provide different levels of service to different types of traffic based on their requirements. QoS can improve network performance, reduce latency, increase throughput, and prevent congestion. concept and its definition. Here is my answer:
QoS Concept:
* Best Effort Service
* Class of Service
* Differentiated Services
* WMM ====================== Definition:
d) A method where traffic is treated equally in a first-come, first-served manner a) A method for classifying network traffic at Layer 2 by marking 802.1Q VLAN Ethernet frames with one of eight service classes b) A method for classifying network traffic at Layer 3 by marking packets with one of 64 different service classes c) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standard Short But Comprehensive Explanation of Correct Answer Only: The correct match between QoS concept and its definition is as follows:
* Best Effort Service: This is a method where traffic is treated equally in a first-come, first-served manner without any prioritization or differentiation. This is the default service level for most networks and applications that do not have specific QoS requirements or guarantees. Best Effort Service does not provide any assurance of bandwidth, delay, jitter, or packet loss.
* Class of Service: This is a method for classifying network traffic at Layer 2 by marking 802.1Q VLAN Ethernet frames with one of eight service classes (0 to 7). These service classes are also known as IEEE
802.1p priority values or PCP Priority Code Point (PCP) is a 3-bit field in the 802.1Q VLAN tag that indicates the priority level of an Ethernet frame . Class of Service allows network devices to identify and handle different types of traffic based on their priority levels. Class of Service is typically used in LAN Local Area Network (LAN) is a network that connects devices within a limited geographic area, such as a home, office, or building environments where Layer 2 switching is predominant.
* Differentiated Services: This is a method for classifying network traffic at Layer 3 by marking packets with one of 64 different service classes (0 to 63). These service classes are also known as DiffServ Code Points (DSCP) DiffServ Code Point (DSCP) is a 6-bit field in the IP header that indicates the service class of a packet . Differentiated Services allows network devices to identify and handle different types of traffic based on their service classes. Differentiated Services is typically used in WAN Wide Area Network (WAN) is a network that connects devices across a large geographic area, such as a country or continent environments where Layer 3 routing is predominant.
* WMM: This is a method for classifying network traffic using access categories based on the IEEE
802.11e QoS standard. WMM stands for Wi-Fi Multimedia and it is a certification program developed by the Wi-Fi Alliance to enhance QoS for wireless networks. WMM defines four access categories (AC): Voice, Video, Best Effort, and Background. These access categories correspond to different priority levels and contention parameters for wireless traffic. WMM allows wireless devices to identify and handle different types of traffic based on their access categories.
References: https://en.wikipedia.org/wiki/Quality_of_service https://www.cisco.com/c/en/us/td/docs/ios-xml
/ios/qos_dfsrv/configuration/xe-16/qos-dfsrv-xe-16-book/qos-dfsrv-overview.html https://www.cisco.com/c
/en/us/support/docs/quality-of-service-qos/qos-packet-marking/10103-dscpvalues.html https://www.cisco.com
/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/81831-qos-wlan.html https://www.wi-fi.org
/discover-wi-fi/wi-fi-certified-wmm

QUESTION 77

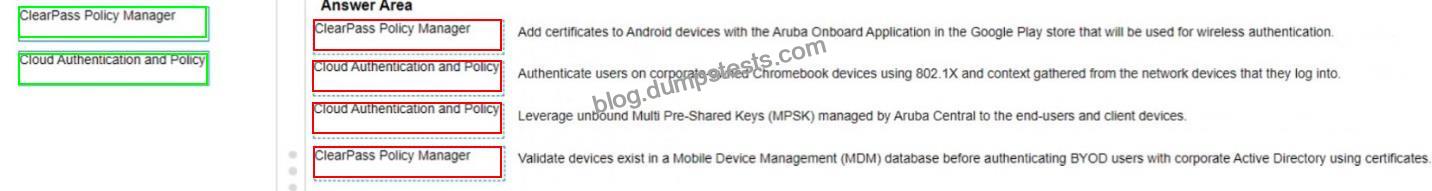

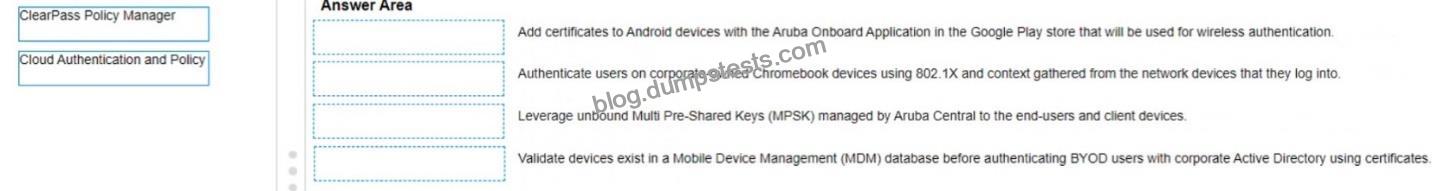

Please match the use case to the appropriate authentication technology

QUESTION 78

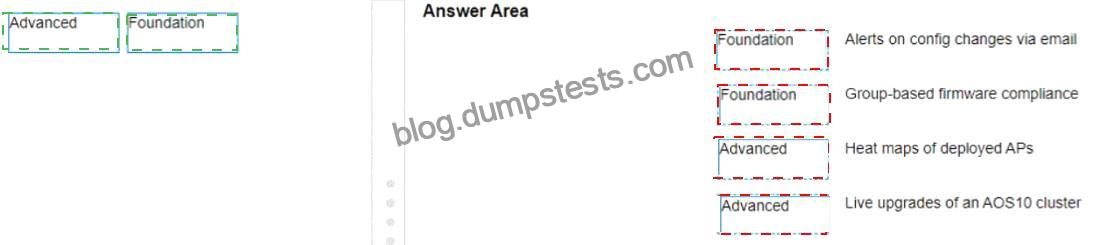

A network administrator with existing IAP-315 access points is interested in Aruba Central and needs to know which license is required for specific features Please match the required license per feature (Matches may be used more than once.)

Explanation:
a) Alerts on config changes via email – Foundation b) Group-based firmware compliance – Foundation c) Heat maps of deployed APs – Advanced d) Live upgrades of an AOS10 cluster – Advanced According to the Aruba Central Licensing Guide1, the Foundation License provides basic device management features such as configuration, monitoring, alerts, reports, firmware management, etc. The Advanced License provides additional features such as AI insights, WLAN services, NetConductor Fabric, heat maps, live upgrades, etc.
https://www.arubanetworks.com/techdocs/central/2.5.3/content/pdfs/licensing-guide.pdf

QUESTION 79
You are working with a pair of 6300M switches in a VSF stack. The switch has 48 SmartRate 5G ports, 2 SFP28 ports, and 2 SFP56 ports. Both SFP56 ports are used for stacking.
You need to provide an LACP connection to another identical stack with the maximum available bandwidth possible.
What should you configure?

a 16-member LAG using 2 SFP28 ports and 6 SR5 ports on each switch

an eight-member LAG using 4 SR5 ports on each switch

an eight-member LAG using 2 SFP28 ports and 2 SR5 ports on each switch

a four-member LAG using 2 SFP28 ports on each switch

To provide an LACP connection with the maximum available bandwidth, one should configure a link aggregation group (LAG) using all available ports that can be used for data transfer. Since the SFP56 ports are used for stacking, the next best option is to use the 2 SFP28 ports and as many SmartRate 5G (SR5) ports as possible on each switch, which would allow for a 16-member LAG, with 2 SFP28 and 6 SR5 ports on each switch contributing to the LAG.

QUESTION 80
What is a common use of LLDP for wireless access points?

testing the quality of the physical link between the access point and the switch

discovery of rogue access points

exchange of RF channel information with nearby access points

negotiation of PoE power level to be provided to the access point

LLDP (Link Layer Discovery Protocol) is commonly used by network devices, including wireless access points, to negotiate PoE (Power over Ethernet) power levels with the switch they are connected to. This allows the access point to communicate its power requirements to ensure it receives the necessary power for optimal operation.

QUESTION 81

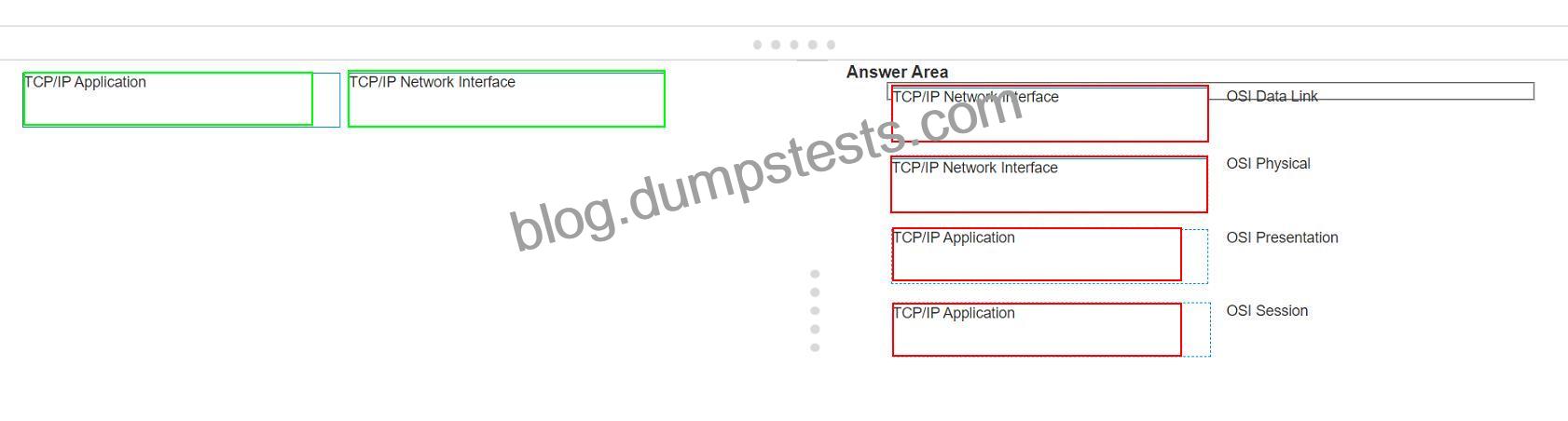

Match the Open Systems Interconnection (OSI) layer with its comparable member of the TCP/IP stack. (Options may be used more than once.)

QUESTION 82
What does a slow amber-flashing Stack-LED indicate?

One switch has a stacking failure.

A port has a stacking failure Stacking mode Is not selected

Stacking mode selected

Stacking is synchronizing Please wait

A slow amber-flashing Stack-LED indicates that stacking mode is selected on the switch. This means that the switch is ready to join a stack or form a new stack if no other switches are present.References:https://www.
arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/stacking-leds.
htm
